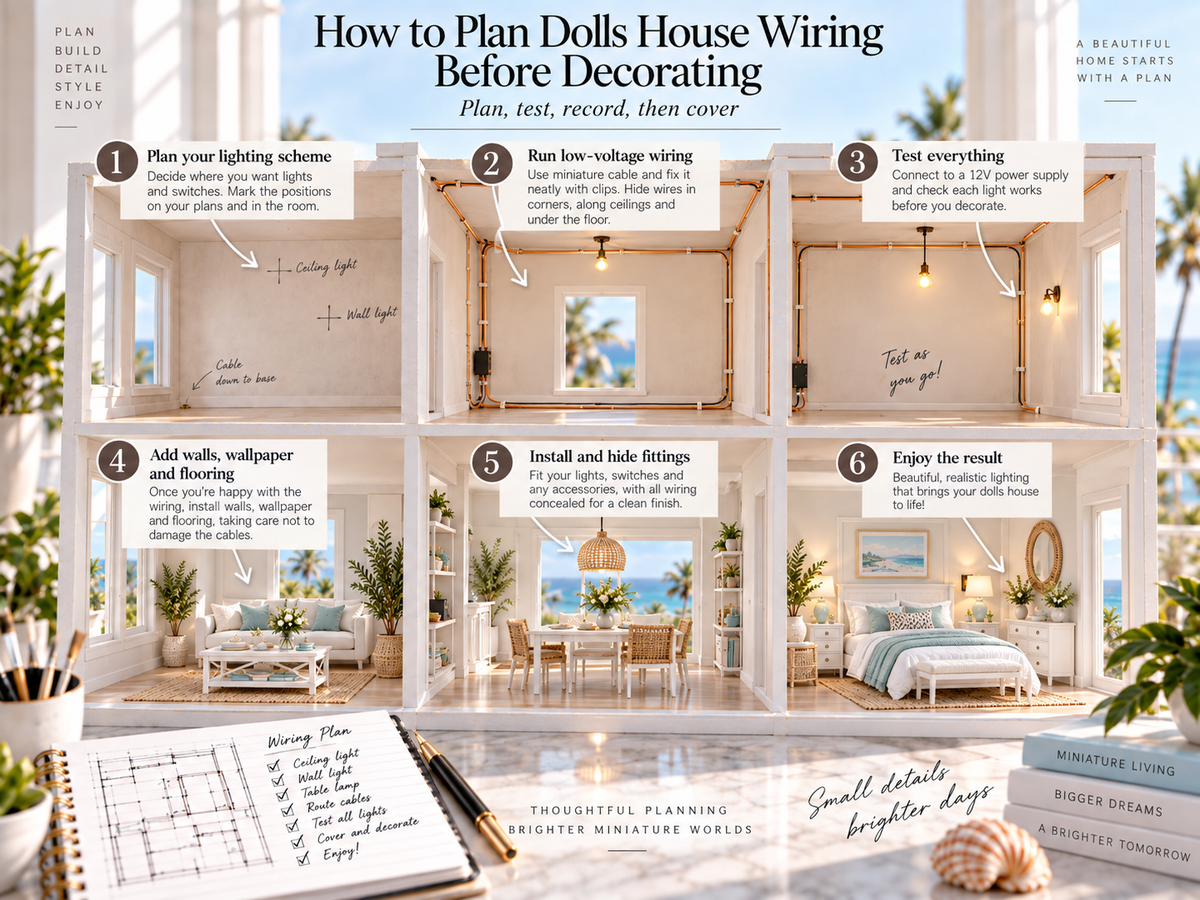

How to Plan Dolls House Wiring Before Decorating

1. Decide room uses.
2. Mark every intended light.
3. Choose the wiring system.
4. Confirm the compatible power supply.
5. Dry-fit the house.
6. Draw the circuit route.
7. Plan wall/floor crossings.
8. Install one section at a time.
9. Test every section.
10. Photograph and label the route.
11. Complete wallpaper/flooring.
12. Install visible fixtures.
13. Test again.

Lighting should support the room.

Before deciding outlet positions, establish likely locations for:

• beds;
• sofas;
• dining tables;
• kitchen units;
• desks;
• fireplaces;
• mirrors;
• wall art.

A wall sconce hidden behind a wardrobe is wasted.

A table-lamp outlet in the middle of an open floor is awkward.

Use the room plan to drive the electrical plan.

Fixed:

• ceiling pendants;
• chandeliers;
• wall sconces;
• exterior lights.

Potentially movable:

• table lamps;
• floor lamps;
• some decorative lights.

Movable fixtures may need outlets rather than permanently wired positions.

Create a simple front elevation or room-by-room sketch.

Mark:

• power entry;
• main runs;
• branches;
• junctions;
• ceiling feeds;
• outlets;
• fixtures;
• inaccessible areas.

It does not need to be architectural-quality.

Its value is as a route map.

Do not mix components casually.

Confirm:

• system voltage;
• fixture voltage;
• connector type;
• plug/outlet type;
• power-supply capacity;
• wire/tape compatibility.

Follow the instructions supplied by the chosen system.

Every fixture adds load.

Use the current or power information supplied with each fixture/system.

Add the planned loads and select a compatible power supply with appropriate capacity according to the manufacturer's instructions.

Do not guess based only on the number of rooms.

Different lamps can draw different current.

Decide where the house connects to the power supply.

Choose a location that is:

• discreet;
• accessible;
• mechanically protected;
• compatible with the wiring system.

Avoid burying the main connection somewhere that requires furniture or exterior trim to be destroyed for service.

For tape-wire systems, horizontal runs are often positioned where they can later be hidden under wallpaper and away from trim or likely nails/cuts.

For round wire, routes may run:

• beneath floors;
• above ceilings;
• through grooves;
• behind wall linings.

Follow the system instructions rather than copying a route designed for another wiring method.

The difficult part is often moving between floors.

Possible routes include:

• stair openings;
• service channels;
• corner chases;
• rear edges;
• concealed cavities.

Mark the route before final assembly where possible.

Know where you expect to fit:

• skirting;
• dado rails;
• door trim;
• cornice;
• picture rails.

Avoid placing concealed wiring exactly where you will later cut, pin or drill unless the system specifically calls for it.

Assemble the relevant walls and floors temporarily.

Check that the proposed route:

• remains hidden;
• does not conflict with tabs;
• avoids stair fixing points;
• clears doors/windows;
• reaches the fixture.

A line that looks perfect on a flat panel may collide with another component after assembly.

Do not build the entire circuit before testing.

A safer workflow:

• install first run;
• test;
• add branch;
• test;
• add next floor;
• test.

When a fault appears, you then know roughly where it was introduced.

A failed bulb or fixture can imitate a wiring fault.

Test the fixture separately according to its instructions before permanently mounting it.

Take clear photographs of every wall and floor carrying concealed wiring.

Include:

• doorways;
• windows;
• corners;
• a ruler where useful.

Create filenames such as:

• Bedroom-left-wall-wiring
• Kitchen-floor-run
• First-floor-ceiling-feed

This creates a service record.

Your planned route and final route may differ.

Update the drawing to show what was actually installed.

Record:

• junction positions;
• changes;
• unused branches;
• outlet locations.

Do one final test after all preparation work but before the wall is covered.

This confirms that sanding, filling or other construction has not damaged the circuit.

Use the finish method recommended for your system.

When trimming wallpaper, remember that hidden conductors may sit beneath it.

Do not cut deeply into the wall along known wiring routes.

If wiring is beneath flooring:

• test before covering;
• photograph the route;
• consider whether removable flooring is practical;
• preserve access to important connections.

Permanent flooring over a serviceable joint can make future repair difficult.

The hidden infrastructure goes in early.

Delicate visible lights should normally be fitted after heavy decorating.

This protects them from:

• paint;
• wallpaper paste;
• sanding dust;
• knocks.

Before changing the circuit or moving the house, disconnect the power source as directed by the system manufacturer.

Low voltage does not mean careless installation is acceptable.

This guide does not cover altering mains plugs, transformers or household electrical wiring.

Use purpose-designed compatible miniature power equipment.

Where mains electrical work is required, use qualified guidance.

For an already-decorated house, first ask whether battery lights are sufficient.

If wired lighting is still preferred, inspect possible routes:

• rear exterior;
• beneath removable floors;
• above ceilings;
• behind removable trim;
• through service cavities.

Choose the least destructive route.

No room plan

Outlets end up behind furniture.

No circuit drawing

Future troubleshooting becomes guesswork.

No staged testing

A single fault becomes hard to locate.

Covering wiring without photographs

Later drilling/cutting becomes risky.

Ignoring trim

A future nail, screw or blade damages the circuit.

Underestimating load

The power supply may be unsuitable.

Mixing systems without understanding compatibility

Connectors, voltages and wiring methods may not match.

• ☐ Room use decided
• ☐ Furniture layout roughly planned
• ☐ Every fixture marked
• ☐ Wiring system selected
• ☐ Fixture compatibility checked
• ☐ Power supply matched to system/load
• ☐ Power entry accessible
• ☐ Routes drawn
• ☐ Floor transitions planned
• ☐ Trim zones considered
• ☐ House dry-fitted
• ☐ Each installed section tested
• ☐ Fixtures pre-tested
• ☐ Final routes photographed
• ☐ Final circuit drawing updated
• ☐ Complete circuit tested before decorating

Plan, install, test, record, then cover.

That sequence gives you the best chance of a reliable system that remains maintainable after the dolls house is decorated.
